Kubernetes (Github, Docs) is a portable, extensible, open-source platform for managing containerized workloads and services, that facilitates both declarative configuration and automation. It has a large, rapidly growing ecosystem. Kubernetes services, support, and tools are widely available.

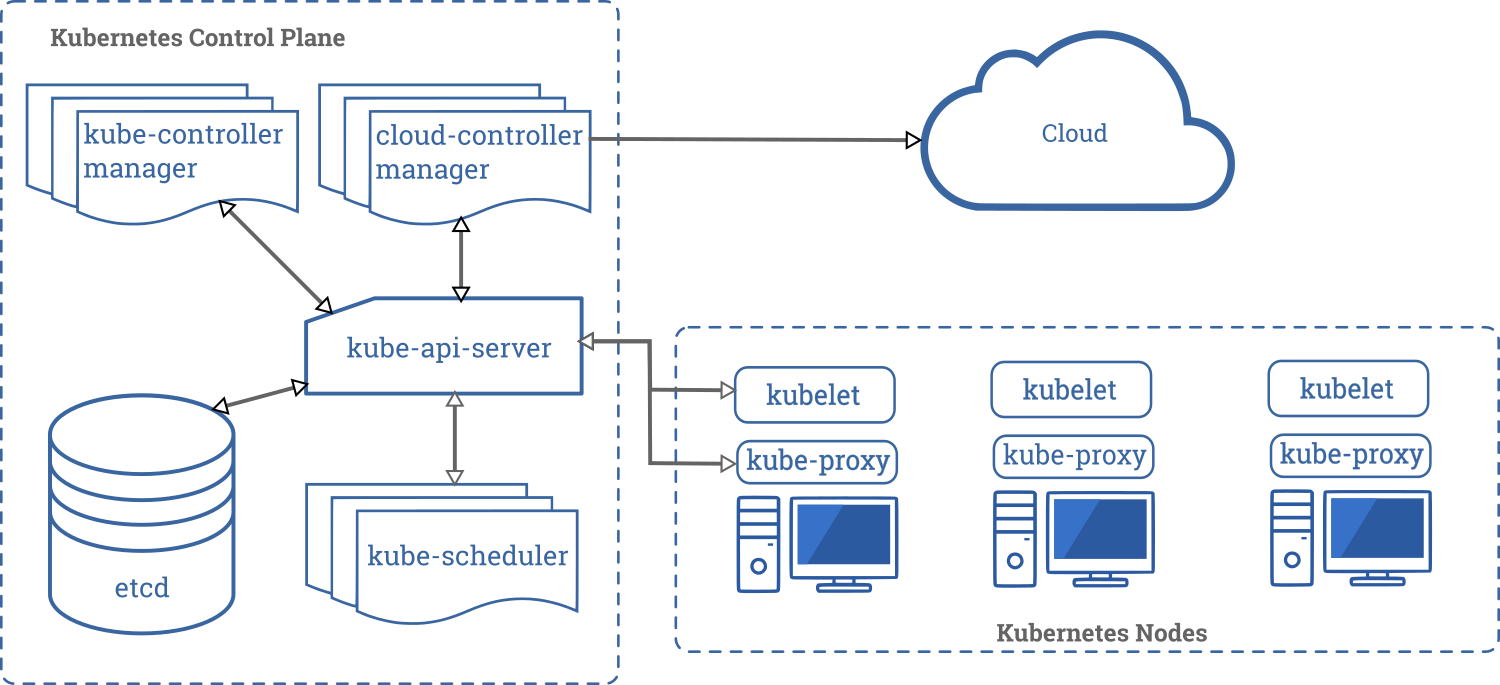

  • Control Plane Components
    • kube-apiserver
    • etcd
    • kube-scheduler
    • kube-controller-manager
    • cloud-controller-manager
  • Node Components
    • kubelet
    • kube-proxy
    • Container runtime
  • Addons
    • DNS
    • Web UI (Dashboard)
    • Container Resource Monitoring
    • Cluster-level Logging

Cluster Architecture



Services, Load Balancing, and Networking





Scheduling and Eviction

Cluster Administration

Extending Kubernetes



Standardized Glossary

Cheat Sheet

Kubectl Autocomplete


source <(kubectl completion bash) # setup autocomplete in bash into the current shell, bash-completion package should be installed first.
echo "source <(kubectl completion bash)" >> ~/.bashrc # add autocomplete permanently to your bash shell.

You can also use a shorthand alias for kubectl that also works with completion:

alias k=kubectl
complete -F __start_kubectl k


source <(kubectl completion zsh)  # setup autocomplete in zsh into the current shell
echo "[[ $commands[kubectl] ]] && source <(kubectl completion zsh)" >> ~/.zshrc # add autocomplete permanently to your zsh shell

Kubectl Context and Configuration

Set which Kubernetes cluster kubectl communicates with and modifies configuration information. See Authenticating Across Clusters with kubeconfig documentation for detailed config file information.

kubectl config view # Show Merged kubeconfig settings.

# use multiple kubeconfig files at the same time and view merged config

kubectl config view

# get the password for the e2e user
kubectl config view -o jsonpath='{.users[?(@.name == "e2e")].user.password}'

kubectl config view -o jsonpath='{.users[].name}'    # display the first user
kubectl config view -o jsonpath='{.users[*].name}'   # get a list of users
kubectl config get-contexts                          # display list of contexts
kubectl config current-context                       # display the current-context
kubectl config use-context my-cluster-name           # set the default context to my-cluster-name

# add a new user to your kubeconf that supports basic auth
kubectl config set-credentials kubeuser/foo.kubernetes.com --username=kubeuser --password=kubepassword

# permanently save the namespace for all subsequent kubectl commands in that context.
kubectl config set-context --current --namespace=ggckad-s2

# set a context utilizing a specific username and namespace.
kubectl config set-context gce --user=cluster-admin --namespace=foo \
  && kubectl config use-context gce
kubectl config unset users.foo                       # delete user foo


apply manages applications through files defining Kubernetes resources. It creates and updates resources in a cluster through running kubectl apply. This is the recommended way of managing Kubernetes applications on production. See Kubectl Book.

Creating Objects

Kubernetes manifests can be defined in YAML or JSON. The file extension .yaml, .yml, and .json can be used.

kubectl apply -f ./my-manifest.yaml            # create resource(s)
kubectl apply -f ./my1.yaml -f ./my2.yaml      # create from multiple files
kubectl apply -f ./dir                         # create resource(s) in all manifest files in dir
kubectl apply -f https://git.io/vPieo          # create resource(s) from url
kubectl create deployment nginx --image=nginx  # start a single instance of nginx
kubectl explain pods                           # get the documentation for pod manifests

# Create multiple YAML objects from stdin
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
  name: busybox-sleep
  - name: busybox
    image: busybox
    - sleep
    - "1000000"
apiVersion: v1
kind: Pod
  name: busybox-sleep-less
  - name: busybox
    image: busybox
    - sleep
    - "1000"

# Create a secret with several keys
cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Secret
  name: mysecret
type: Opaque
  password: $(echo -n "s33msi4" | base64 -w0)
  username: $(echo -n "jane" | base64 -w0)

Viewing, Finding Resources

# Get commands with basic output
kubectl get services                          # List all services in the namespace
kubectl get pods --all-namespaces             # List all pods in all namespaces
kubectl get pods -o wide                      # List all pods in the current namespace, with more details
kubectl get deployment my-dep                 # List a particular deployment
kubectl get pods                              # List all pods in the namespace
kubectl get pod my-pod -o yaml                # Get a pod's YAML

# Describe commands with verbose output
kubectl describe nodes my-node
kubectl describe pods my-pod

# List Services Sorted by Name
kubectl get services --sort-by=.metadata.name

# List pods Sorted by Restart Count
kubectl get pods --sort-by='.status.containerStatuses[0].restartCount'

# List PersistentVolumes sorted by capacity
kubectl get pv --sort-by=.spec.capacity.storage

# Get the version label of all pods with label app=cassandra
kubectl get pods --selector=app=cassandra -o \

# Retrieve the value of a key with dots, e.g. 'ca.crt'
kubectl get configmap myconfig \
  -o jsonpath='{.data.ca\.crt}'

# Get all worker nodes (use a selector to exclude results that have a label
# named 'node-role.kubernetes.io/master')
kubectl get node --selector='!node-role.kubernetes.io/master'

# Get all running pods in the namespace
kubectl get pods --field-selector=status.phase=Running

# Get ExternalIPs of all nodes
kubectl get nodes -o jsonpath='{.items[*].status.addresses[?(@.type=="ExternalIP")].address}'

# List Names of Pods that belong to Particular RC
# "jq" command useful for transformations that are too complex for jsonpath, it can be found at https://stedolan.github.io/jq/
sel=${$(kubectl get rc my-rc --output=json | jq -j '.spec.selector | to_entries | .[] | "\(.key)=\(.value),"')%?}
echo $(kubectl get pods --selector=$sel --output=jsonpath={.items..metadata.name})

# Show labels for all pods (or any other Kubernetes object that supports labelling)
kubectl get pods --show-labels

# Check which nodes are ready
JSONPATH='{range .items[*]}{@.metadata.name}:{range @.status.conditions[*]}{@.type}={@.status};{end}{end}' \
 && kubectl get nodes -o jsonpath="$JSONPATH" | grep "Ready=True"

# List all Secrets currently in use by a pod
kubectl get pods -o json | jq '.items[].spec.containers[].env[]?.valueFrom.secretKeyRef.name' | grep -v null | sort | uniq

# List all containerIDs of initContainer of all pods
# Helpful when cleaning up stopped containers, while avoiding removal of initContainers.
kubectl get pods --all-namespaces -o jsonpath='{range .items[*].status.initContainerStatuses[*]}{.containerID}{"\n"}{end}' | cut -d/ -f3

# List Events sorted by timestamp
kubectl get events --sort-by=.metadata.creationTimestamp

# Compares the current state of the cluster against the state that the cluster would be in if the manifest was applied.
kubectl diff -f ./my-manifest.yaml

Updating Resources

kubectl set image deployment/frontend www=image:v2               # Rolling update "www" containers of "frontend" deployment, updating the image
kubectl rollout history deployment/frontend                      # Check the history of deployments including the revision
kubectl rollout undo deployment/frontend                         # Rollback to the previous deployment
kubectl rollout undo deployment/frontend --to-revision=2         # Rollback to a specific revision
kubectl rollout status -w deployment/frontend                    # Watch rolling update status of "frontend" deployment until completion
kubectl rollout restart deployment/frontend                      # Rolling restart of the "frontend" deployment

cat pod.json | kubectl replace -f -                              # Replace a pod based on the JSON passed into std

# Force replace, delete and then re-create the resource. Will cause a service outage.
kubectl replace --force -f ./pod.json

# Create a service for a replicated nginx, which serves on port 80 and connects to the containers on port 8000
kubectl expose rc nginx --port=80 --target-port=8000

# Update a single-container pod's image version (tag) to v4
kubectl get pod mypod -o yaml | sed 's/\(image: myimage\):.*$/\1:v4/' | kubectl replace -f -

kubectl label pods my-pod new-label=awesome                      # Add a Label
kubectl annotate pods my-pod icon-url=http://goo.gl/XXBTWq       # Add an annotation
kubectl autoscale deployment foo --min=2 --max=10                # Auto scale a deployment "foo"

Patching Resources

# Partially update a node
kubectl patch node k8s-node-1 -p '{"spec":{"unschedulable":true}}'

# Update a container's image; spec.containers[*].name is required because it's a merge key
kubectl patch pod valid-pod -p '{"spec":{"containers":[{"name":"kubernetes-serve-hostname","image":"new image"}]}}'

# Update a container's image using a json patch with positional arrays
kubectl patch pod valid-pod --type='json' -p='[{"op": "replace", "path": "/spec/containers/0/image", "value":"new image"}]'

# Disable a deployment livenessProbe using a json patch with positional arrays
kubectl patch deployment valid-deployment  --type json   -p='[{"op": "remove", "path": "/spec/template/spec/containers/0/livenessProbe"}]'

# Add a new element to a positional array
kubectl patch sa default --type='json' -p='[{"op": "add", "path": "/secrets/1", "value": {"name": "whatever" } }]'

Editing Resources

Edit any API resource in your preferred editor.

kubectl edit svc/docker-registry                      # Edit the service named docker-registry
KUBE_EDITOR="nano" kubectl edit svc/docker-registry   # Use an alternative editor

Scaling Resources

kubectl scale --replicas=3 rs/foo                                 # Scale a replicaset named 'foo' to 3
kubectl scale --replicas=3 -f foo.yaml                            # Scale a resource specified in "foo.yaml" to 3
kubectl scale --current-replicas=2 --replicas=3 deployment/mysql  # If the deployment named mysql's current size is 2, scale mysql to 3
kubectl scale --replicas=5 rc/foo rc/bar rc/baz                   # Scale multiple replication controllers

Deleting Resources

kubectl delete -f ./pod.json                                              # Delete a pod using the type and name specified in pod.json
kubectl delete pod,service baz foo                                        # Delete pods and services with same names "baz" and "foo"
kubectl delete pods,services -l name=myLabel                              # Delete pods and services with label name=myLabel
kubectl -n my-ns delete pod,svc --all                                     # Delete all pods and services in namespace my-ns,

# Delete all pods matching the awk pattern1 or pattern2
kubectl get pods  -n mynamespace --no-headers=true | awk '/pattern1|pattern2/{print $1}' | xargs  kubectl delete -n mynamespace pod

Interacting with running Pods

kubectl logs my-pod                                 # dump pod logs (stdout)
kubectl logs -l name=myLabel                        # dump pod logs, with label name=myLabel (stdout)
kubectl logs my-pod --previous                      # dump pod logs (stdout) for a previous instantiation of a container
kubectl logs my-pod -c my-container                 # dump pod container logs (stdout, multi-container case)
kubectl logs -l name=myLabel -c my-container        # dump pod logs, with label name=myLabel (stdout)
kubectl logs my-pod -c my-container --previous      # dump pod container logs (stdout, multi-container case) for a previous instantiation of a container
kubectl logs -f my-pod                              # stream pod logs (stdout)
kubectl logs -f my-pod -c my-container              # stream pod container logs (stdout, multi-container case)
kubectl logs -f -l name=myLabel --all-containers    # stream all pods logs with label name=myLabel (stdout)
kubectl run -i --tty busybox --image=busybox -- sh  # Run pod as interactive shell
kubectl run nginx --image=nginx -n
mynamespace                                         # Run pod nginx in a specific namespace
kubectl run nginx --image=nginx                     # Run pod nginx and write its spec into a file called pod.yaml
--dry-run=client -o yaml > pod.yaml

kubectl attach my-pod -i                            # Attach to Running Container
kubectl port-forward my-pod 5000:6000               # Listen on port 5000 on the local machine and forward to port 6000 on my-pod
kubectl exec my-pod -- ls /                         # Run command in existing pod (1 container case)
kubectl exec my-pod -c my-container -- ls /         # Run command in existing pod (multi-container case)
kubectl top pod POD_NAME --containers               # Show metrics for a given pod and its containers

Interacting with Nodes and Cluster

kubectl cordon my-node                                                # Mark my-node as unschedulable
kubectl drain my-node                                                 # Drain my-node in preparation for maintenance
kubectl uncordon my-node                                              # Mark my-node as schedulable
kubectl top node my-node                                              # Show metrics for a given node
kubectl cluster-info                                                  # Display addresses of the master and services
kubectl cluster-info dump                                             # Dump current cluster state to stdout
kubectl cluster-info dump --output-directory=/path/to/cluster-state   # Dump current cluster state to /path/to/cluster-state

# If a taint with that key and effect already exists, its value is replaced as specified.
kubectl taint nodes foo dedicated=special-user:NoSchedule

Resource types

List all supported resource types along with their shortnames, API group, whether they are namespaced, and Kind:

kubectl api-resources

Other operations for exploring API resources:

kubectl api-resources --namespaced=true      # All namespaced resources
kubectl api-resources --namespaced=false     # All non-namespaced resources
kubectl api-resources -o name                # All resources with simple output (just the resource name)
kubectl api-resources -o wide                # All resources with expanded (aka "wide") output
kubectl api-resources --verbs=list,get       # All resources that support the "list" and "get" request verbs
kubectl api-resources --api-group=extensions # All resources in the "extensions" API group

Formatting output

To output details to your terminal window in a specific format, add the -o (or –output) flag to a supported kubectl command.

Output format Description
-o=custom-columns=<spec> Print a table using a comma separated list of custom columns
-o=custom-columns-file=<filename> Print a table using the custom columns template in the <filename> file
-o=json Output a JSON formatted API object
-o=jsonpath=<template> Print the fields defined in a jsonpath expression
-o=jsonpath-file=<filename> Print the fields defined by the jsonpath expression in the <filename> file
-o=name Print only the resource name and nothing else
-o=wide Output in the plain-text format with any additional information, and for pods, the node name is included
-o=yaml Output a YAML formatted API object

Examples using -o=custom-columns:

# All images running in a cluster
kubectl get pods -A -o=custom-columns='DATA:spec.containers[*].image'

# All images excluding "k8s.gcr.io/coredns:1.6.2"
kubectl get pods -A -o=custom-columns='DATA:spec.containers[?(@.image!="k8s.gcr.io/coredns:1.6.2")].image'

# All fields under metadata regardless of name
kubectl get pods -A -o=custom-columns='DATA:metadata.*'

More examples in the kubectl reference documentation.

Kubectl output verbosity and debugging

Kubectl verbosity is controlled with the -v or –v flags followed by an integer representing the log level. General Kubernetes logging conventions and the associated log levels are described here.

Verbosity Description
--v=0 Generally useful for this to always be visible to a cluster operator.
--v=1 A reasonable default log level if you don’t want verbosity.
--v=2 Useful steady state information about the service and important log messages that may correlate to significant changes in the system. This is the recommended default log level for most systems.
--v=3 Extended information about changes.
--v=4 Debug level verbosity.
--v=6 Display requested resources.
--v=7 Display HTTP request headers.
--v=8 Display HTTP request contents.
--v=9 Display HTTP request contents without truncation of contents.


Web UI (Dashboard)

Deploying the Dashboard UI

kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.0.0/aio/deploy/recommended.yaml

For each of the following snippets for ServiceAccount and ClusterRoleBinding, you should copy them to new manifest files like dashboard-admin.yaml and use kubectl apply -f dashboard-admin.yaml to create them.



apiVersion: v1
kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard


apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
  name: admin-user
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
- kind: ServiceAccount
  name: admin-user
  namespace: kubernetes-dashboard

Getting a Bearer Token

kubectl -n kubernetes-dashboard describe secret $(kubectl -n kubernetes-dashboard get secret | grep admin-user | awk '{print $1}')
kubectl create -f dashboard-admin.yaml
Run locally
kubectl get secrets
kubectl describe secrets default-token-drrn4

kubectl proxy

Delete the Dashboard UI

kubectl get secret,sa,role,rolebinding,services,deployments --namespace=kube-system | grep dashboard
kubectl delete -f https://raw.githubusercontent.com/kubernetes/dashboard/master/aio/deploy/recommended.yaml

kubectl delete deployment kubernetes-dashboard --namespace=kube-system
